Step Platform with Integrated Canopy

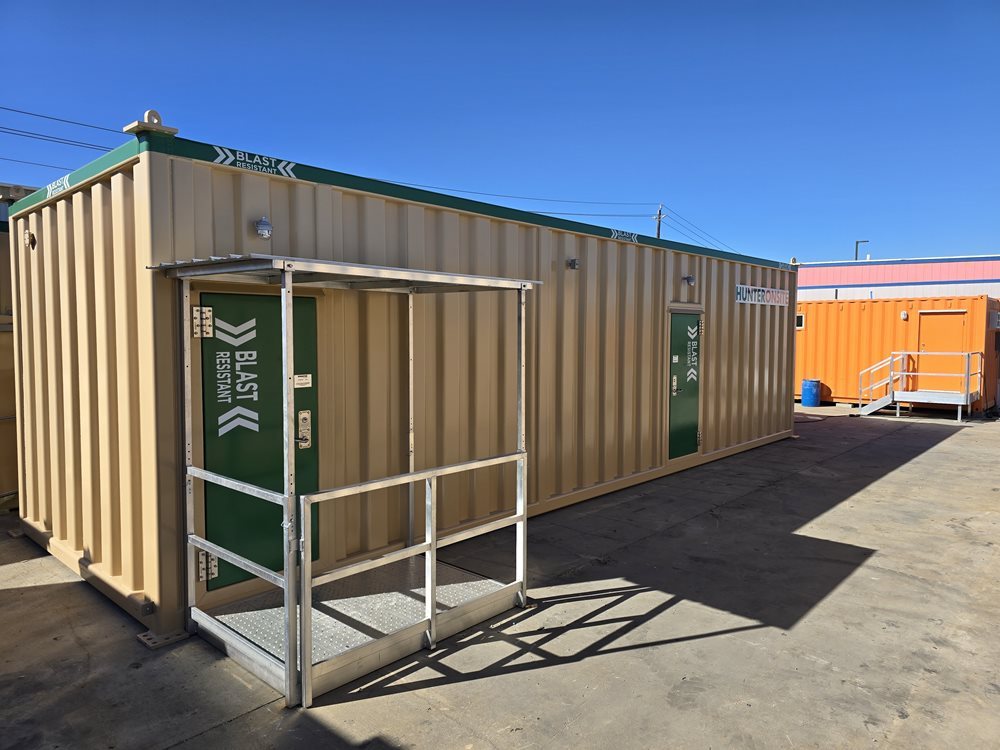

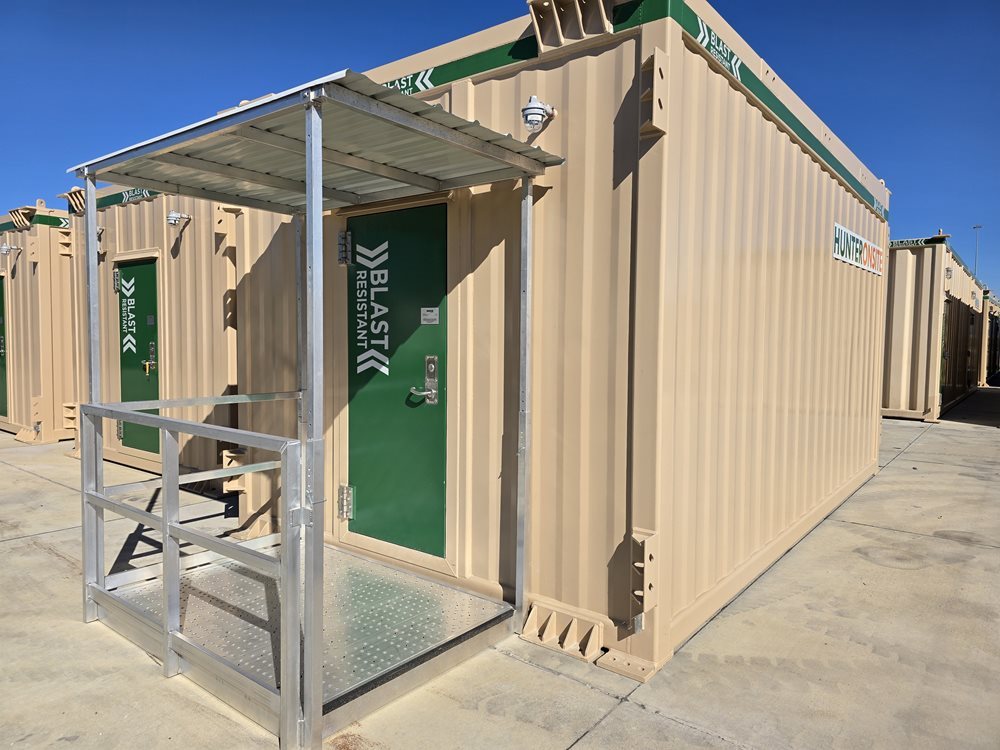

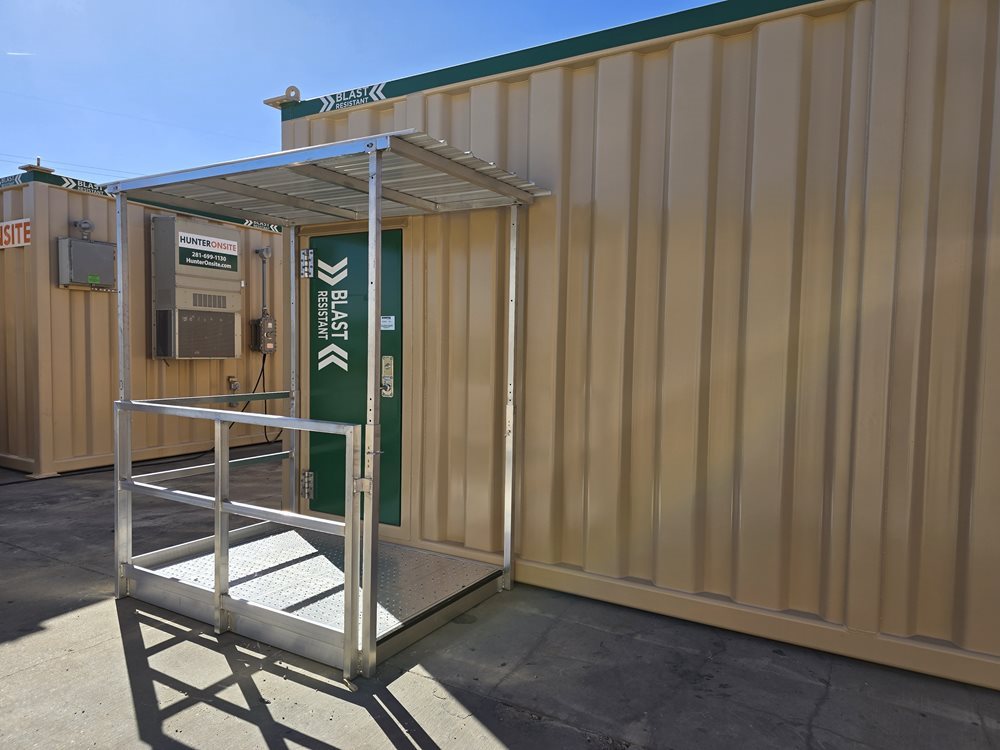

Improve access to elevated blast-resistant buildings with a five-foot step platform and integrated canopy. The platform provides a defined entrance and exit path, while the adjustable canopy adds overhead protection at the building doorway.
Designed for temporary industrial sites, the platform combines stairs, guardrails and a supported walking surface in a single access solution configured for compatible Hunter Onsite rental buildings.
Convenient Access for Elevated Modular Buildings
The step platform creates a dedicated access point for compatible modular buildings positioned above ground level. Its integrated components help simplify the entrance arrangement while supporting routine personnel movement during the rental period.
Ideal for: | |
✓ Elevated blast-resistant building entrances | ✓ Temporary industrial facilities and worksites |
✓ Weather-exposed personnel entry points | ✓ Projects requiring a defined access path |
Step Platform with Integrated Canopy Elevated access with overhead protection ✓ Five-foot step height ✓ Adjustable integrated canopy ✓ 42-inch guardrails |
Integrated Access and Overhead Protection
The platform combines practical access features with structural specifications intended for demanding temporary-site applications.
Access and Protection | Structural Design |
✓ Five-foot platform height for elevated entrances ✓ Flexible canopy height from 87 to 105 inches ✓ 42-inch guardrails around the elevated platform | ✓ Engineered for a 100 PSF live load ✓ Walking surface designed for a 300-pound concentrated load ✓ Single-direction building access configuration |
Step Platform Specifications
Specification | Step Platform with Integrated Canopy |
|---|---|
Step Height | 5 ft. |
Canopy Height | Adjustable from 87" to 105" |
Guardrail Height | 42" |
Live Load | 100 PSF |
Walking-Surface Load | Minimum 300 lb. concentrated vertical load distributed over a 12" × 12" area |
Access Configuration | Single-direction entrance and exit |
Platform compatibility, placement and installation requirements should be confirmed for the applicable building configuration and project site.
ACCESS · WEATHER PROTECTION · INTEGRATED DESIG
See the Step Platform in Action
See how the integrated canopy, elevated platform, stairs and guardrails create a convenient access point for a compatible blast-resistant building.
Configure Access for Your Rental Building
Tell our team about your building configuration, entrance height and site requirements. We can help determine whether the step platform with integrated canopy is appropriate for your rental application.
